Product Detail

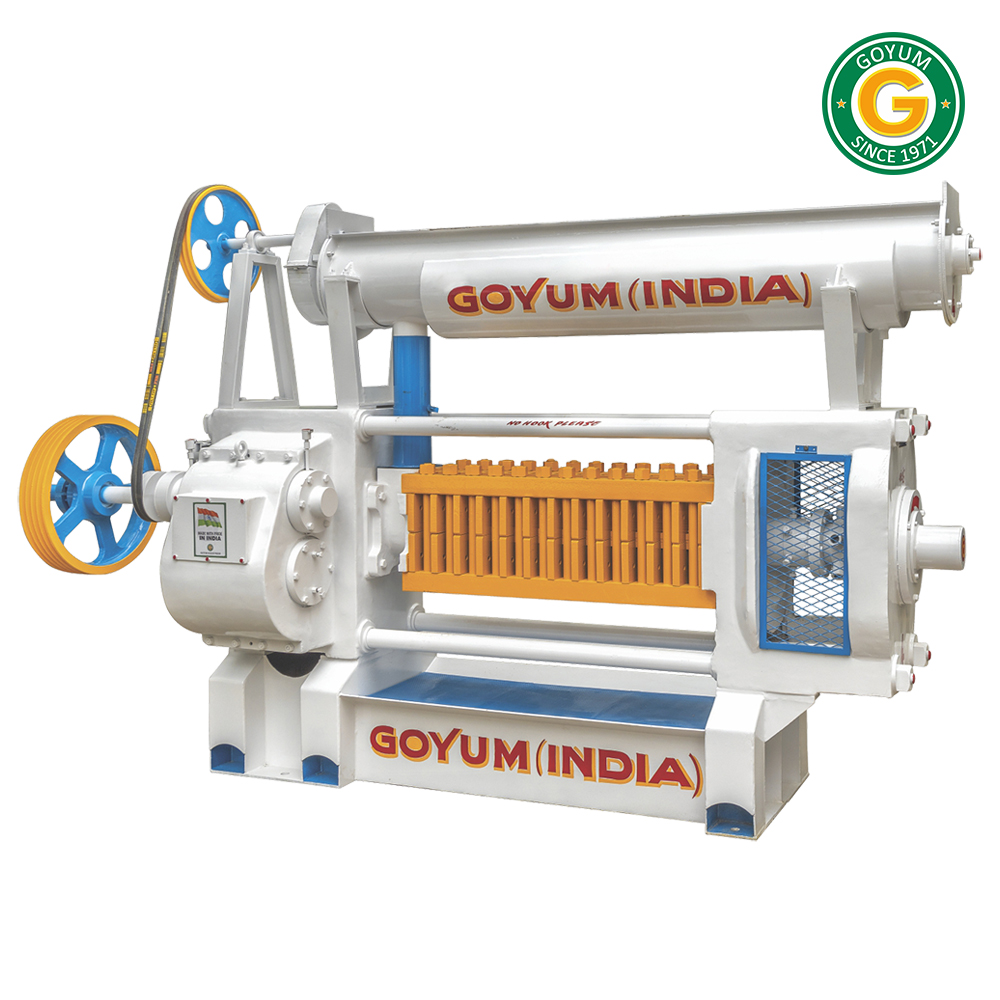

Sunflower Seed Oil Crushing Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts.This Oil Extraction Machine comes with both Horizontal & Vertical Kettle / Cooker. Features: Bodies Material: Cast Iron Gearbox Double Reduction Gearbox of Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set Chamber Steel Fabricated from Mild Steel Plates of Four Sections. Horizontally fitted. Size: Ø7” X 44” Long, Worm Assembly Case Hardened with Cone Point Main Worm Shaft Can be drawn out without disturbing the Gearbox. Cake Thickness The Machine needs to be stopped for adjusting the Cake Thickness. Kettle Three or Four Stage with Steam Jackets for efficient cooking of Seed. Pipe Fitting contains all the Required Accessories Crammer Shaft For Extra Cramming of the seed or cake in the feed body. Oil & Oil Cake Superior Quality Maintenance Minimum Crushing Capacity Differs with the density of oilseeds & nuts and quantity of oil in it.
- Capacity 18 - 20 Ton in 24 Hours
- Chamber Size Dia 7"X 44" Long
- Country of Origin Made in India
- Dimension (LxBxH) 11'8" x 4'3" x 11'10"
- Dimensions 11'8" x 4'3" x 11'10"
- Expeller Motor 3 Phase, 50 HP, 1440 RPM
- Gearbox Material Cast Iron body with Mild Steel Spur Gear and Bevel Gear Set
- Kettle Motor 3 Phase, 5 HP, 1440 RPM
- Machine Type Commercial Expeller
- Model Name/Number GOYUM MK-V-C
- Motor Power 3 Phase, 50 HP, 1440 RPM
- Operation Type Continuous / Batch Operation
- Production Capacity 250 - 300 Machines Annually
- Suitable For Factory, Workshop & Industrial Use
