Product Detail

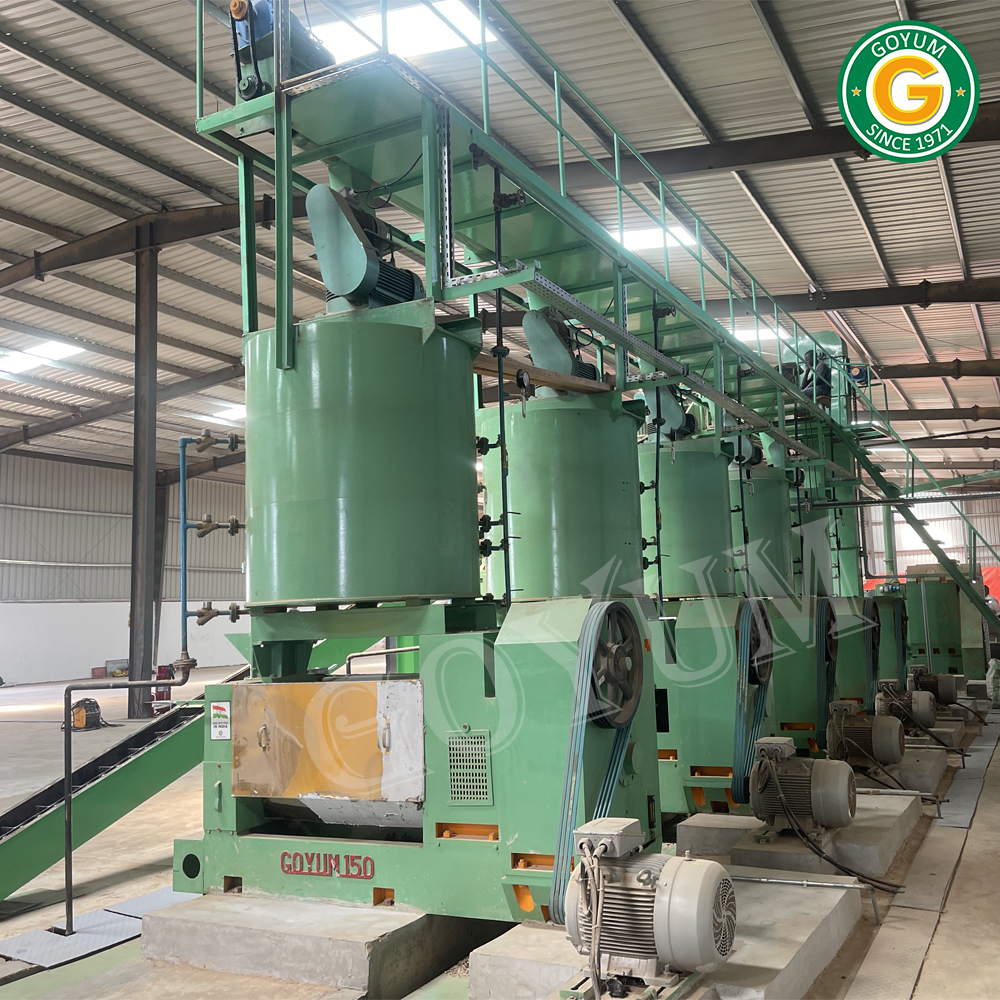

Neem Seed Oil Extraction Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts. Features: Bodies and Base Fabricated from Mild steel Gearbox Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Chamber Steel Casting of Four Sections. Horizontally fitted Size: Ø 7.5” X Ø 6.5” X 45” Long. Worm Assembly Hard Faced along with Discharge Ring and Compression Ring Main Worm Shaft Can be withdrawn out without Disturbing the Gear Box. Kettle 3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. Cake Thickness Can be Adjusted on Running Machine. Crammer Shaft For extra Cramming of the Seed or Cake in the Feed Body. Oil & Oil Cake Superior Quality Maintenance Minimum Crushing Capacity Differs with the density of oilseeds & nuts and quantity of oil in it.
- Capacity 15 - 17 Ton in 24 Hour
- Chamber Size Dia 7.5" X Dia 6.5" X 45" Long
- Country of Origin Made in India
- Crushing Capacity 15 - 17 Ton in 24 Hours
- Expeller Motor 3 Phase, 40 HP, 1440 RPM
- Height 11'5" (With Three Stage Kettle), 13' (With Four Stage Kettle)
- Installation Type Industrial Setup
- Kettle Motor For 3 Stage: 3 Phase, 5 HP, 1440 RPM, For 4 Stage: 3 Phase, 7.5 HP, 1440 RPM
- Length 8'6"
- Machine Type Commercial Expeller
- Model GOYUM 150
- Production Capacity 250 - 300 Machines Annually
- Suitable For Factory, Workshop & Industrial Use
- Usage/Application Multiseed Oil Extraction
- Weight 4800 kgs (With Three Stage Kettle), 5500 Kgs (With Four Stage Kettle)
