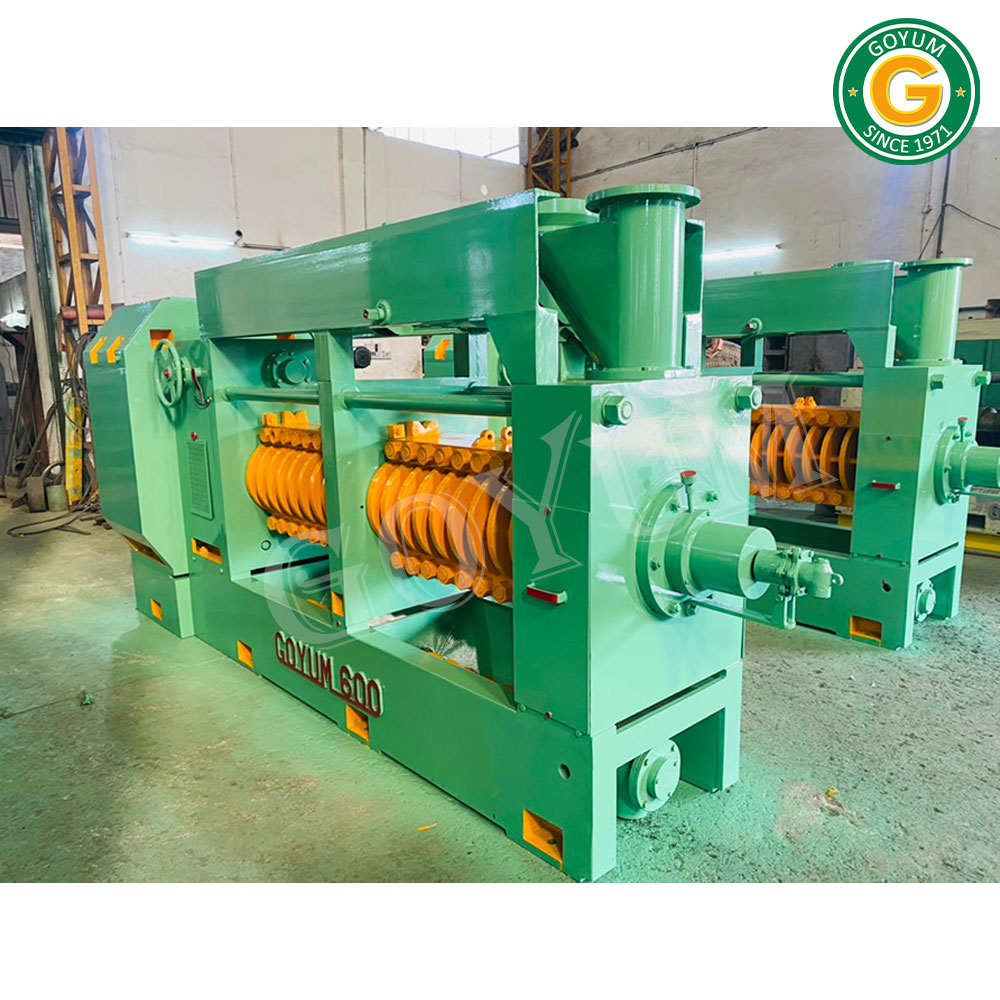

Cashew Nut Shell Liquid / CNSL Oil Production Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts. Features: Bodies and Base Fabricated from Mild steel Gearbox Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base. Chamber Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 9" x 36" Long, Discharge End: - Size: Ø 8" x 36" Long Worm Assembly Hard Face welded along with Discharge Ring and Sliding Ring Main Worm Shaft Can be withdrawn out without Disturbing the Gear Box. The Shaft is water cooled. Crammer Shaft For Extra Cramming of the Seed or Cake is fitted on the Feed Body and is driven by 2 H.P. Geared Motor. Round Kettle (Cooker) 4 Stages with Steam Jackets of Ø 60” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers. Cake Thickness Can be Adjusted on Running Machine. Oil & Oil Cake Superior Quality Maintenance Minimum Crushing Capacity Differs with the density of oilseeds & nuts and quantity of oil in it.
- Crushing Capacity 40 - 45 Ton in 24 Hours in Pre-Pressing, 30 - 35 Ton in 24 Hours in Single & Final Crushing
- Dimension (LxBxH) 14' x 5'6" x 16'6"
- Expeller Motor 3 Phase, 100 HP, 1440 RPM
- Kettle Motor 3 Phase, 20 HP, 1440 RPM
- Machine Type Commercial Expeller
- Model GOYUM 600
- Operation Type Semi Automatic
- Production Capacity 80 – 100 Machines Annually
- Usage/Application Multiseed Oil Extraction
- Weight 11, 500 kgs
