Product Detail

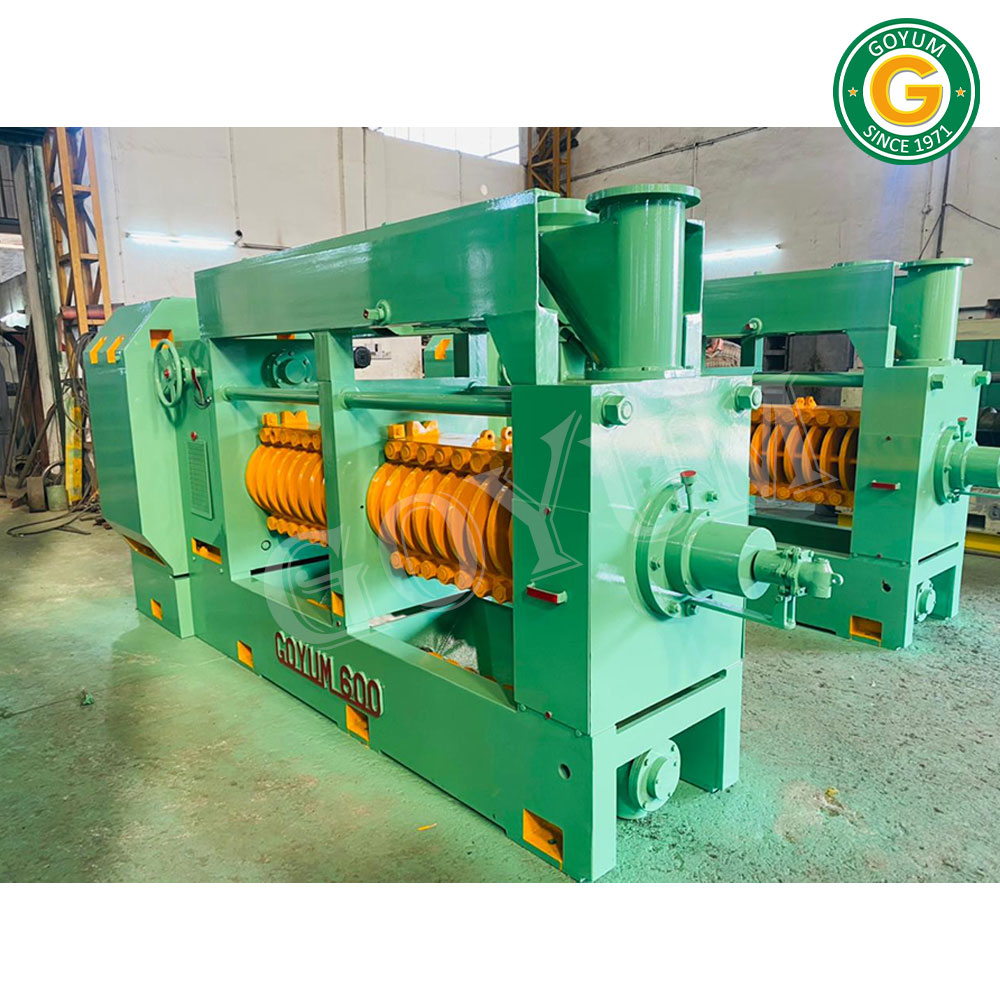

Cashew Nut Shell Liquid / CNSL Oil Pressing Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts. Features: Bodies and Base Fabricated from Mild steel Gearbox Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base. Chamber Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 9" x 36" Long, Discharge End: - Size: Ø 8" x 36" Long Worm Assembly Hard Face welded along with Discharge Ring and Sliding Ring Main Worm Shaft Can be withdrawn out without Disturbing the Gear Box. The Shaft is water cooled. Crammer Shaft For Extra Cramming of the Seed or Cake is fitted on the Feed Body and is driven by 2 H.P. Geared Motor. Round Kettle (Cooker) 4 Stages with Steam Jackets of Ø 60” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers. Cake Thickness Can be Adjusted on Running Machine. Oil & Oil Cake Superior Quality Maintenance Minimum Crushing Capacity Differs with the density of oilseeds & nuts and quantity of oil in it.
- Capacity 40 - 45 Ton in 24 Hours in Pre-Pressing, 30 - 35 Ton in 24 Hours in Single & Final Crushing
- Condition New
- Country of Origin Made in India
- Dimension (LxBxH) 14' x 5'6" x 16'6"
- Driven Type Electric
- Expeller Motor 3 Phase, 100 HP, 1440 RPM
- Installation Type Industrial Setup
- Kettle Motor 3 Phase, 20 HP, 1440 RPM
- Machine Type Industrial Processing Machine
- Maintenance Regular Cleaning And Service Required
- Model Name/Number GOYUM 600
- Operation Type Continuous / Batch Operation
- Production Capacity 80 – 100 Machines Annually
- Suitable For Factory, Workshop & Industrial Use
- Voltage 220V, 380V, 440V
- Weight 11, 500 kgs
