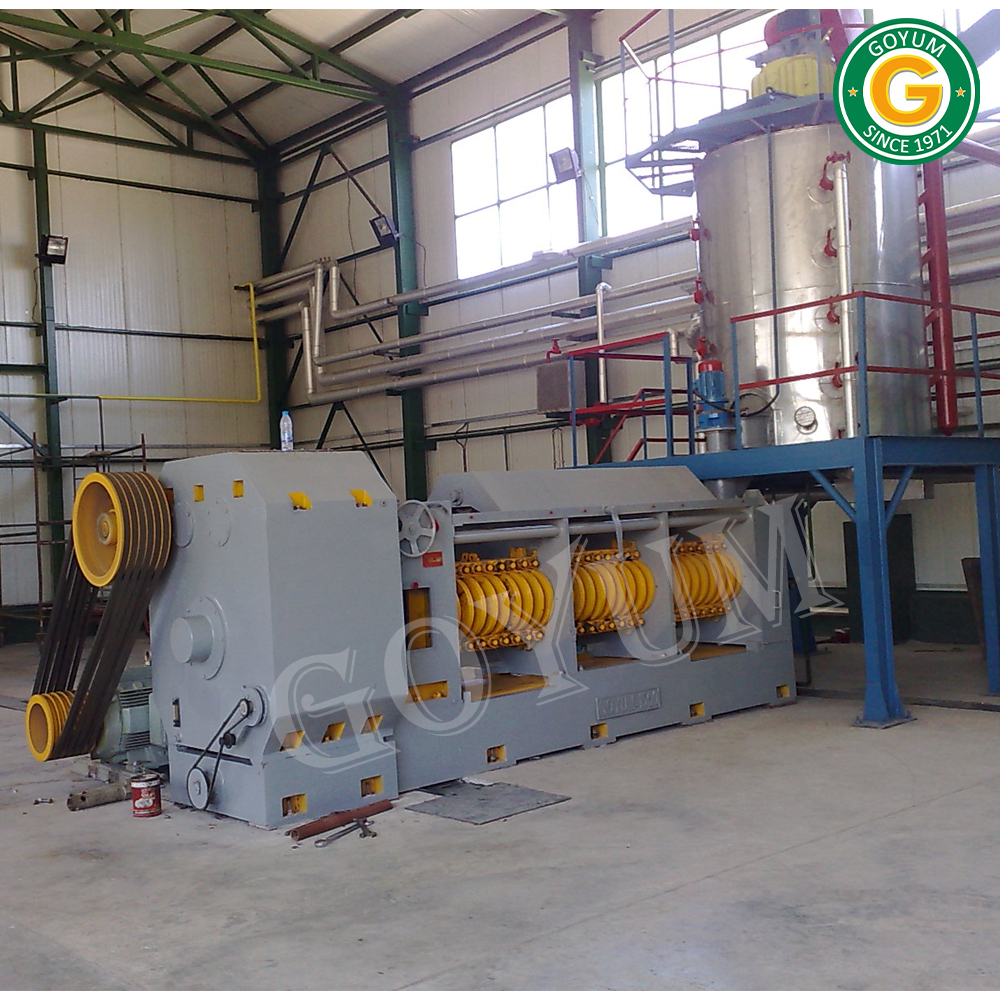

Cashew Nut Shell Liquid / CNSL Oil Press Machine is used to extract oil from various types of edible as well as non-edible oil seeds & nuts. Features: Bodies and Base Fabricated from Mild steel Gearbox Triple Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel. Aligned with bodies on single fabricated base. Chamber Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 12" x 36" Long, Middle: Size: Ø 11" x 36" Long, Discharge End: - Size: Ø 10" x 36" Long Worm Assembly Hard Face welded along with Discharge Ring and Sliding Ring Main Worm Shaft Can be withdrawn out without Disturbing the Gear Box. The Shaft is water cooled. Crammer Shaft For Extra Cramming of the Seed or Cake is fitted on the Feed Body and is driven by 3 H.P. Geared Motor. Round Kettle (Cooker) 5 Stages with Steam Jackets of Ø66” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers. Supported separately on fabricated structure Cake Thickness Can be Adjusted on Running Machine. Oil & Oil Cake Superior Quality Maintenance Minimum Chamber Lifting Manual Crushing Capacity Differs with the density of oilseeds & nuts and quantity of oil in it.)
- Country of Origin Made in India
- Dimension (LxBxH) 30' x 11'6" x 19'6"
- Driven Type Electric
- Expeller Motor 3 Phase, 150 HP, 1440 RPM
- Kettle Motor 3 Phase, 25 HP, 1440 RPM
- Model GOYUM 1500
- Production Capacity 40 – 50 Machines Annually
- Usage/Application Multiseed Oil Extraction
- Voltage 220V, 380V, 440V
- Weight 25, 500 kgs (Expeller, Cooker and Supporting Structure
