Product Detail

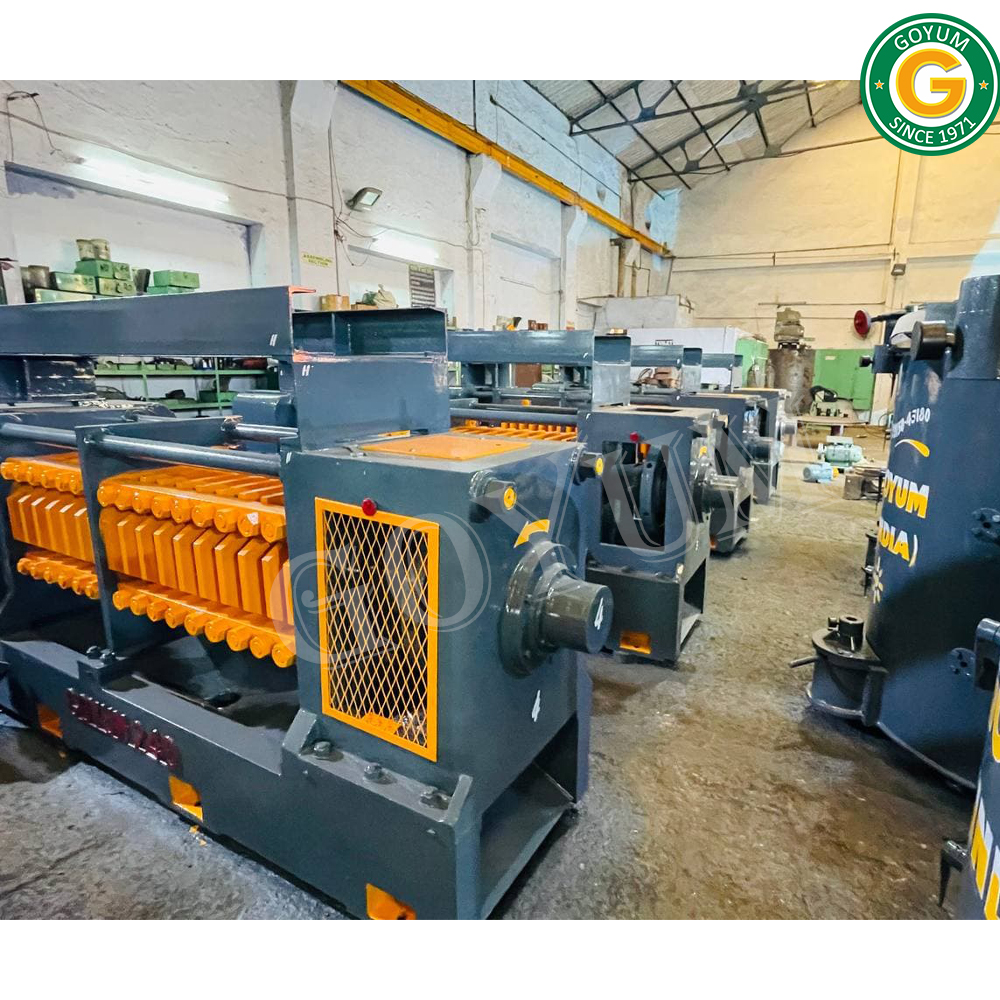

Large Scale Multi Oilseed Extractor Machine is used to extract oil from various types of edible oil seeds as well as non-edible oil seeds & nuts.This Oil Extraction Machine comes with both Horizontal & Vertical Kettle / Cooker. Features: Bodies and Base Fabricated from Mild steel Gearbox Double Reduction Gearbox with Helical Gears of Cast Steel and Pinions of Alloy Steel Chamber Material: Cast Steel. Vertically fitted Feed End: - Size: Ø 9" x 24" Long, Discharge End: - Size: Ø 7" x 36" Long Worm Assembly Heat Treated in Feed Side Chamber and Hard Face welded in Discharge Side Chamber Main Worm Shaft Can be withdrawn out without Disturbing the Gear Box. Round Kettle 3 or 4 stages with Steam Jackets of Ø 48” for efficient cooking of Seed. Pipe Fitting Contains Safety Valve, Steam Spray Pipe, Pressure Gauge, Steam Valves & Steam Traps. (Long Kettle provided as per requirement) Cake Thickness Can be Adjusted on Running Machine. Crammer Shaft For extra Cramming of the Seed or Cake in the Feed Body. Oil & Oil Cake Superior Quality Maintenance Minimum Crushing capacity Differs with the density of oilseeds & nuts and quantity of oil in it.
- Chamber Size Feed End: Dia 9" x 24" Long, Discharge End: Size: Dia 7" x 36" Long
- Dimension (LxBxH) 10'2" x 4'1" x 7'7"
- Expeller Motor 3 Phase, 75 HP, 960 RPM
- Kettle Motor 3 Phase, 5 HP, 1440 RPM
- Machine Type Commercial expeller
- Model GOYUM 240
- Operation Type Semi Automatic
- Production Capacity 150 – 170 Machines Annually
- Usage/Application MultiSeed Oil Extraction
- Weight 5200 kgs with Long Kettle, 6500 kgs with Three Stage Round Kettle
